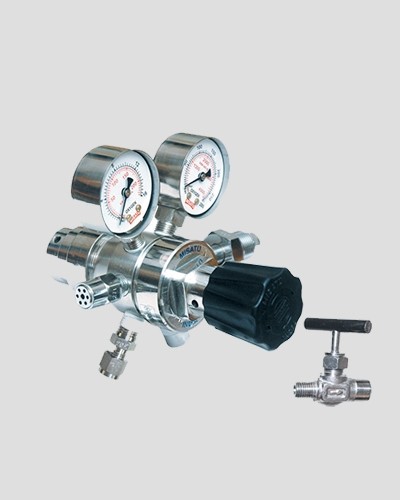

MISATU Two Stage Stainless Steel Regulator:
Stainless Steel Two Stage Regulators are recommended for high purity, corrosion resistant/toxic gas applications where constant, precise delivery pressures to systems are required. The materials of construction will not contaminate the gas stream, and the regulators are highly resistant to inboard diffusion of atmospheric contaminants. These regulators are highly recommended for laboratory and processing facilities involving carrier gases, doping mixtures and instrument calibration, and in critical production applications such as semiconductor manufacture.
Design & Construction Features:
- Stainless steel diaphragm with PTFE Cover
- 2.5” Stainless Steel dual scale gauges
- Cartridge type seat assembly
- Stainless steel body with 5 ports, 2 high pressure, 3 low pressure
- Resting relief valve
- Design capable of passing 2 x 10 – 9 SCC/SEC inboard Helium leak rate
- Unique diaphragm to reduce potential leak paths
Material of Constructions:
- Body : 316L Stainless Steel
- Bonet : Stainless Steel
- Diaphragm : 316 Stainless Steel
- Nozzle : 316 Stainless Steel
- Seat : PTFE
- Seals : Teflon
- Popet : 316 Stainless Steel
- Cartridge Filter : Stainless Steel Wire Mesh
- Seat Return Spring: Stainless Steel
- Pressure Adjusting Spring : Spring Steel Plated
- Adjusting Knob: Stainless Steel Rolled Key
- Gauges : Stainless Steel
Outlet Delivery Pressure::
- 0 – 15 BAR
- 0 – 20 BAR
- 0 – 25 BAR
